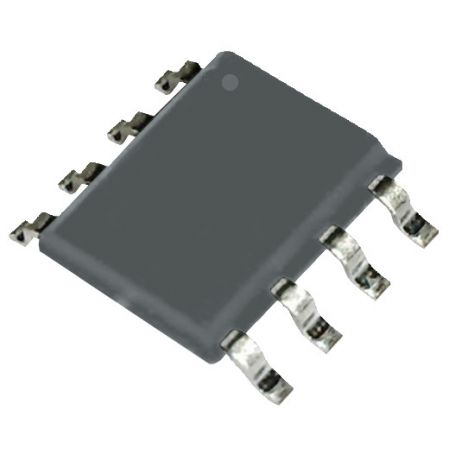

PCA9536 - 4 bits GPIO expander 4 - SOIC8 - I2C
PCA9536 GPIO Expander
- 4 Input/Output
- 2.3 to 5.5V
- Interface: I2C
- SOIC8
Secure payments
Payments are secured by LyraCollect, a French payment collection company.
Payments are secured by LyraCollect, a French payment collection company.
Multiple delivery solutions
It is possible to delivered to your home, to a pick-up point or picked up by appointment at MCHobby
It is possible to delivered to your home, to a pick-up point or picked up by appointment at MCHobby
Parcels packed with care and efficiency
We prepare, pack and ship your orders with great respect and care.
We prepare, pack and ship your orders with great respect and care.
4 bits GPIO Expander on I2C bus
Despite its small size, that SMD component can be greatly useful when you need a few additional GPIOs.
Discovered on a National Control Device product, that small GPIO expander is quite easy to use with Arduino (see this GitHub example) and MicroPython (see cour Micropython library).
Notice that PCA9536 do not have any address bit (I2C address is fixed).
Technical details
- 4-bits GPIO over I2C (clock from 0 Hz to 400 kHz)
- Voltage: 2.3 to 5.5 V
- 5V tolerant I/O
- Polarity Inversion register
- Low current in sleep mode
- Power-on reset interne
- 4 I/O pins configured as input at power on (internal pull-up resistor of 100 kΩ).
- ESD protection over 2000 V
- PCA9536 datasheet (pdf)
Tutorial
- Using the PCA9536 with MicroPython (wiki MCHobby)
IC-PCA9536-SOIC8-CMS
3232100025332
- Interface : Bus
- I2C
- Interface : Logic
- equal Vcc
- Interface : Vcc (power)
- 2V5, 3V3, 5V
- Library
- MicroPython, Arduino
