6.35mm / 1/4" Shaft Hub - M3 screw
2x shaft coupler
- Aluminium
- Shaft: 1/4", 6.35mm
- Screw: M3
Secure payments
Payments are secured by LyraCollect, a French payment collection company.
Payments are secured by LyraCollect, a French payment collection company.
Multiple delivery solutions
It is possible to delivered to your home, to a pick-up point or picked up by appointment at MCHobby
It is possible to delivered to your home, to a pick-up point or picked up by appointment at MCHobby
Parcels packed with care and efficiency
We prepare, pack and ship your orders with great respect and care.
We prepare, pack and ship your orders with great respect and care.
1/4" Shaft coupler (6.35mm) - M3 screw
The universal aluminum assembly couplers allow you to mount wheels or other parts on the 1/4" shaft motor. The coupler is fixed on the shaft using an M3 screw (included) that you can tighten using the Allen key (also included). It will be particularly interesting for use with stepper motors.
Each coupler is fitted with 4 holes to accommodate M3 screws. As the coupler is made of aluminum, you can easily enlarge the holes :-)
Technical details
- Size: 25mm
- Tickness: 5mm
- Weight: 3.2gr (each)
- Shaft: 6.35mm or 1/4"
- Screw hole: M3

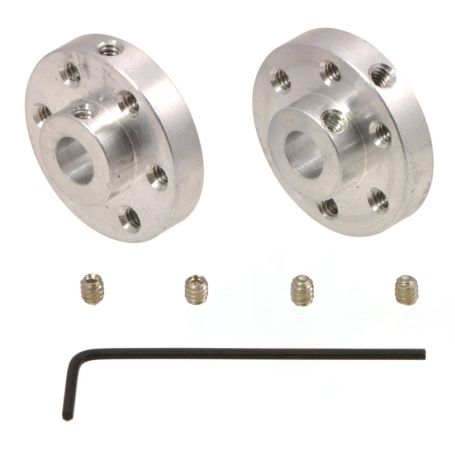

Content
- 2x aluminium coupler
- 2x M3 screw to secure the coupler on shaft
- 1x M3 key
POL-AXEHUB-6.35mm-2
3232100008854
