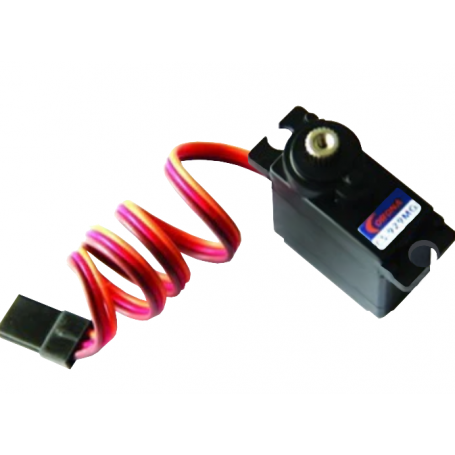

Micro Servo Corona DS929-MG
Micro servo-motor
- Metal gear
- Range: 0 to ___°
- Speed: 0.12s/60°
- Torque: 2.5 Kg*cm
- Current: 200mA (no load)
Secure payments
Payments are secured by LyraCollect, a French payment collection company.
Payments are secured by LyraCollect, a French payment collection company.
Multiple delivery solutions
It is possible to delivered to your home, to a pick-up point or picked up by appointment at MCHobby
It is possible to delivered to your home, to a pick-up point or picked up by appointment at MCHobby
Parcels packed with care and efficiency
We prepare, pack and ship your orders with great respect and care.
We prepare, pack and ship your orders with great respect and care.
Micro-servo with metal gearing and high resolution/accuracy
A great micro-servo for demanding projects.
It offers accurate positioning and high resolution.
- Metal gearing with double MR85 ball bearing
- High resolution (tight dead band)
- Accurate positioning
- Fast Response
- Quick acceleration
- Constant 2.5 Kg*cm torque
- Full set adapters (dampened mount points)
Technical details
- Control system: Pulse width control 1500us neutral
- Operating voltage range: 4.8V~6.0V
- Operating temperature range: -20℃ to +60℃
- Operating speed: 0.12s/60°
- Stall torque: 2.5kg.cm
- Standing torque: 2.5kg.cm hold out
- Idle current: 10mA at stopped
- Running current: 200mA/60° no load
- Stall current: 960mA
- Dead band width: <= 3usec
- Motor type : Cored metal brush
- Potentiometer type : 2 Slider/direct drive
- Amplifier type : High efficiency MCU+MOSFET
- Gear material: Metal
- Connector wire length: 215mm
- Connector wire gauge: 28AWG
- Dimensions : 22.5 x 11.5 x 24.6mm
- Weight: 12.5 gr
