M.2 NVMe 2242 B+M - pour Raspberry-Pi
Payments are secured by LyraCollect, a French payment collection company.
It is possible to delivered to your home, to a pick-up point or picked up by appointment at MCHobby
We prepare, pack and ship your orders with great respect and care.

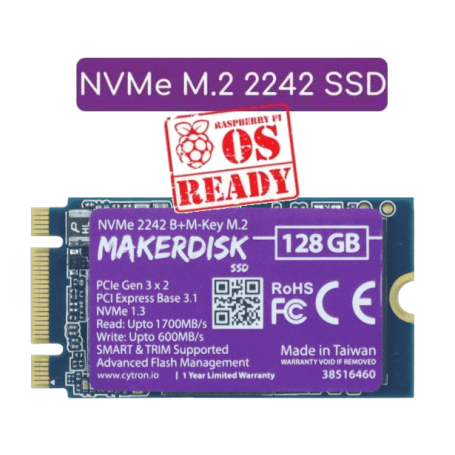

A SSD M.2 disk for Raspberry-Pi preloaded with Raspberry-Pi OS
Once connected to the M.2 Hat, you will be surprised by the performances of this new storage of 128GB, 256GB, 512GB for Raspberry-Pi. the operating system is loaded instantaneously!
Shipped preloaded with Raspberry-Pi OS 64 bits (Desktop edition + recommended software) you will be able to start the Operating System setup at first power-up. You will not have to install the OS on the SSD, it is already there.
Just remove the SD Card and power-up your Pi!
This product requires an adapter to work with the Raspberry-Pi:
- for Raspberry-Pi 5: a M2 PCIe HAT for Raspberry-Pi 5 to connect on the new RPI PCIe bus.
- for Raspberry-Pi 4: an USB --vers--> M.2 Hat adapter
- for Compute Module 4: a carrier board with M.2 interface
Warning:
- This product is a consumable with a pre-installed operating system. It is neither returned nor exchanged!!
- Will requires the latest Boot EEPROM on the Pi 5 (see tutorial section)
- Do not format this disque if you want to use it with a Raspberry-Pi.
Technical details
- PCIe Gen 3 x 2
Can be used with NVidia Jetson, Windows, Linux - PCI Express Base 3.1
- NVMe 1.3
- SMART & TRIM
- Advanced Flash Management
- Read up to 1700 MB/s
- Write up to 600 MB/s
- Temp: 0 to 70°C
SSD NVMe only
Be careful not to confuse this product with a SATA SSD. This is not a SATA SSD.
This product is a NVMe (Non-Volatile Memory Express) SSD disk who is using the PCIe bus available on the Raspberry-Pi 5.
Content
For each order, you will receive:
- The SSD NVMe disk of 128GB, 256GB, 512GB (as selected)
- Preloaded with Raspberry-Pi OS Bookwork 64 bits
Tutorial
- Upgrade the Boot ROM of Raspberry-Pi (Cytron.io, English)
And many other informations and benchmarks
