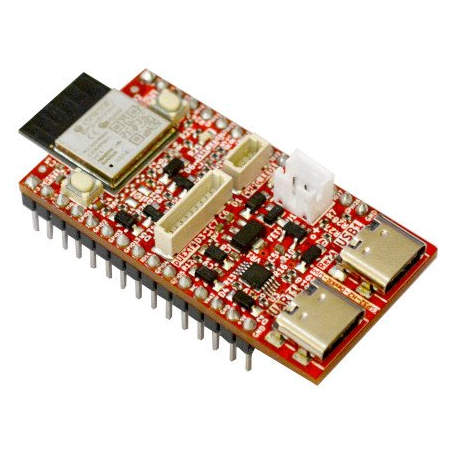

Module ESP32-H2 avec chargeur LIPO - USB-C
ESP32-H2 development board with LIPO charger and USB-C. Based on a single RISC-V core at 96MHz with 320 KB RAM and 4 MB Flash. The ESP32-H2 offer WiFi, Bluetooth, Zigbee, Thread, Matter, HomeKit connectivity.
Payments are secured by LyraCollect, a French payment collection company.
It is possible to delivered to your home, to a pick-up point or picked up by appointment at MCHobby
We prepare, pack and ship your orders with great respect and care.
ESP32-H2 RISC-V development board for WiFi, Bluetooth, Zigbee, Thread, MQTT, etc
The ESP32-H2 is a WiFi (802.15.4) and Bluetooth 5 (LE) plateform developed with a Low Power consumption.
Accordingly to Espressif datasheet, the ESP32-H2 Bluetooth support includes BLE 5.3 (certified), Bluetooth Mesh, Bluetooth LE Long Range, Bluetooth LE High Speed (2 Mbps).
The ESP32-H2 also includes the support for Thread 1.3, Zigbee 3.0, Matter, HomeKit, MQTT
This SoC features a 32 bits RISC-V single core clocked at 96 MHz with 320 Kio SRAM (16 Kio cache) along with 128 Kio ROM. The SoC also include 4 Kio of LP memory (Low Power Memory) and 4 Mio of embedded Flash memory (H2-Mini-1).
The board also expose 2 USB-C connectors: the first one is connected to an USB-to-Serial converted connected to the ESP32. It is used to program and debug your project. The second USB-C is connected directly to the ESP32 allowing to ESP32 to offers additional USB service.
As microcontroler, the ESP32-H2 expose 19 GPIOs with support for ADC, SPI, UART, I2C, I2S (sound), RMT (Remote Control Transceiver), GDMA (General Direct Memory Access) and LED PWN.
The Microcontroler also expose two useful connectors:
- Qwiic/StemmaQT: a 4 pins connector carry an I2C bus and power. This popular connectivity is supported by Adafruit Industries and Sparkfun Electronic. Sensor can quickly be connected
- pUEXT: the compact version of Olimex UEXT connector. This one carry I2C, SPI, UART buses together with power. UEXT is a very neat connector technology (we love it at MCHobby). A large UEXT product range is available at UEXT @ MCHobby and UEXT @ Olimex.
Can be programmed with Espressif ESP-IDF or with Arduino (see user manual).
Technical Details
- ESP32-H2-MINI-1-N4 module
- 10µA in deep sleep
- USB-C with USB-to-Serial converter (powering and programming)
- Second USB-C connected directly to ESP32-H2 (powering, programming, OTG, JTAG debugging)
- Li-Po charger (power measurement & power sense circuitry can be enabled)
- pUEXT connector (compact version of UEXT connector)
- Qwiic/Stemma connector (I2C bus)
- Reset button
- User button
- User LED
- GPIOs at 2.54mm spacing
- Pinout compatible with Espressif ESP32-H2-DevKitM-1
- Operating temperature: -40°C to +85°C
- Dimensions: 48 x 25mm
Tutorials
- User Manual (Olimex, English)
- ESP32-H2 schematic (Olimex, English)
- ESP32-H2 GitHub (GitHub Olimex)
