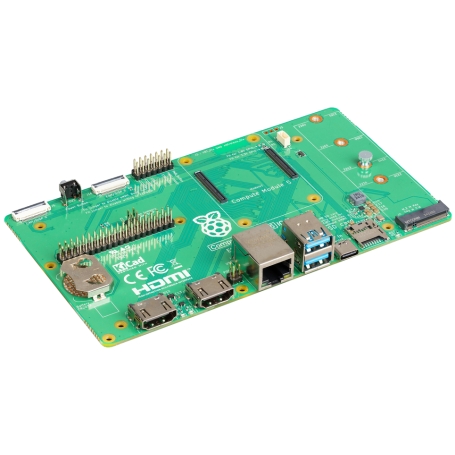

IO Board pour Compute Module 5

Official IO board for the Compute Module 5

The Raspberry Pi Compute Module 5 IO Board is a great starting point to create a product/solution base on the Compute Module 5. This form factor is  designed for industrial application while making all the interfaces of the CM5 available on one single side of the board. All the the Raspberry-Pi 5 features are available with some crunchy advantages like full size HDMI, M.2 SSD Slot ready to use, support for external WiFi antenna.

Engineers and advanced makers will take the fill advantages of the modular interfacing associated to the PI5 computation power.

This product doesn't work alone, you will need a Compute Module and a power supply to work

Content

For each order, you will receive the Compute Module 5 IO board.

Technical details

• 1x Gigabit Ethernet RJ45 with PoE+ HAT+ support
• 2×USB 3 sockets
• 1x microSD connector for CM5 Lite modules (CM5 without eMMC. The OS will then be loaded from SD)
• 1x M.2 M key PCIe socket
• 2× full-size HDMI 2.0 connectors
• 1x 4-pin fan connector
• 2× MIPI FPC connectors (22-pin 0.5 mm ribbon, DSI/CSI-2)
• Raspberry Pi HAT+ connector 40-pin GPIO header
• 1x RTC battery
• 1x USB-C for +5V Power Input
• 1x Power button (to power on/off the CM5 like the Pi5 does)
• 160 × 90 mm form factor
